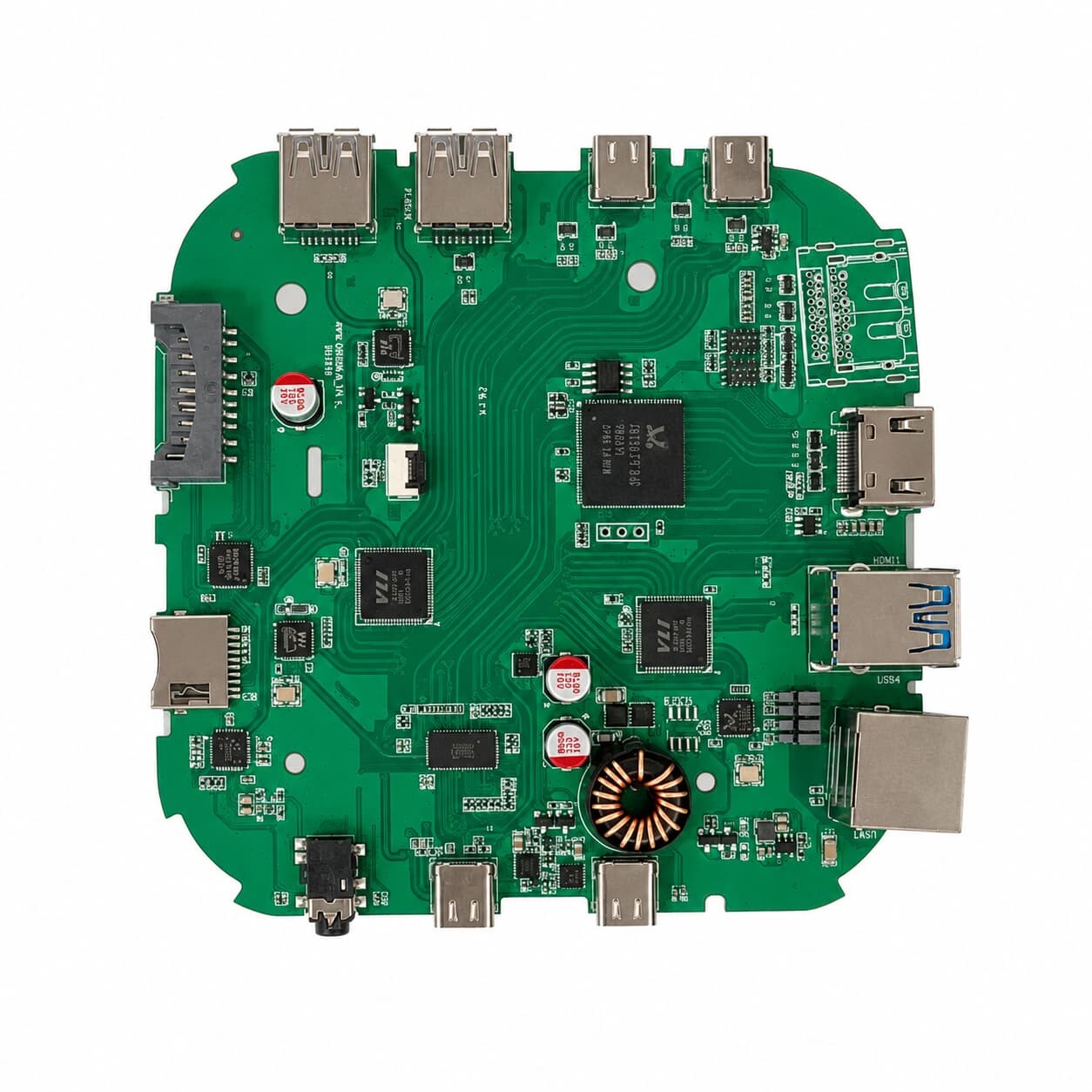

DS006-B
14 + 1 USB-C Multi-Port PCBA Dock with Triple 4K@60Hz Display, Gigabit Ethernet, and 10Gbps High-Speed Data Transfer. Includes SD/TF Card Reader and 3.5mm Audio Jack for versatile desktop and mobile workstation expansion.
Core Features
- USB-C 3.1 Upstream 10Gbps, Reverse Charging 80W
- USB-C PD 100W Power Input
- HDMI + Dual DP Triple 4K@60Hz Display
- 3× USB-A 10Gbps + 1× USB-A 480 Mbps
- 2× USB-C 1 Gbps
- RJ45 Gigabit Ethernet
- SD 3.0 + TF 3.0 Card Reader
- 3.5mm audio input/output
Typical Use Cases
Multi-screen productivity
Supports triple 4K@6Hz display for improved productivity
Content Creation
High-speed data transfer supports video editing and large file processing.
Mobile Work
Compact design for easy portability, perfect for business travel.
Customizable APIs and capabilities
All APIs and features can be customized to your specific needs. Below are typical configuration options:
- 1× USB-C 3.1 Uplink (10Gbps, Reverse Power Delivery up to 80W, DP Alt Mode)
- 1× USB-C PD 100W Power Input
- 1× HDMI 4K@60Hz
- 2× DP 4K@60Hz
- 3× USB-A 1 Gbps
- 1× USB-A 480 Mbps
- 2× USB-C 1 10Gbps
- 1× RJ45 Gigabit (10/100/1000M)
- 1× SD 3.0
- 1× TF 3.0
- 1 × 3.5mm audio (input/output)
OEM/ODM Customization
White-label services
Custom Branding, Logos & Packaging Design
Hardware Customization
Interface, port layout, and chassis modifications
Firmware Tuning
Feature Optimization and Custom Development
Authentication Support
CE, FCC, and RoHS regional compliance support
Package Contents
- DS006-B Docking Station
- USB-C Cable
- Power Adapter
- User Manual
- Warranty Card
Related Products
Touchscreen Docking Station
Smart dock with touch screen and voice control for PC. Use the AI assistant to launch apps, search files, manage windows, and boost productivity.

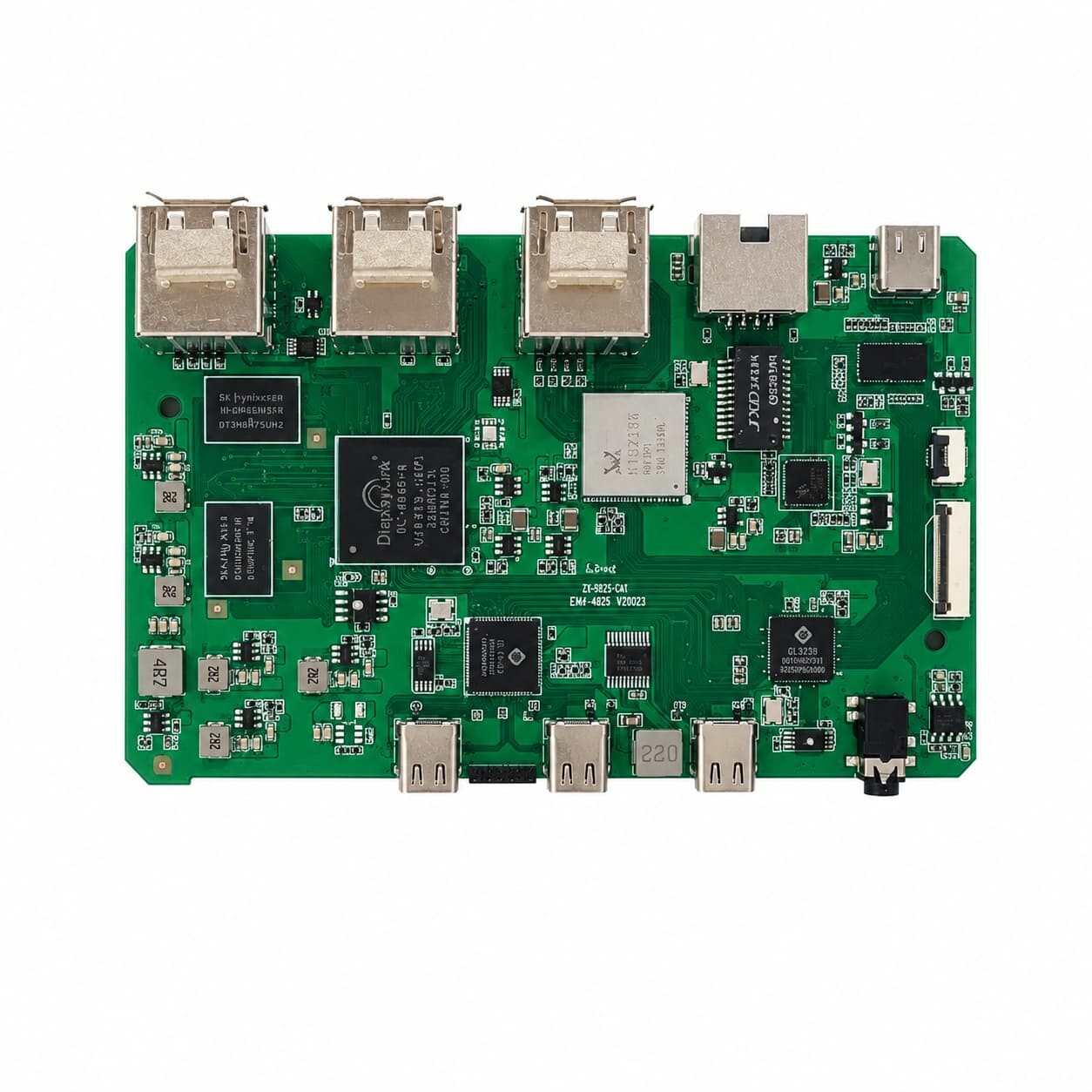

DS024
17 + 1 USB-C Quad-Screen Dock PCBA, aluminum chassis, supports quad-display output and 8K projection. Integrated DisplayLink technology enables two additional 4K@60Hz outputs. Equipped with 2.5G networking, SD/TF card reader, and PD 100W charging—all in one cable to create a complete desktop workstation.

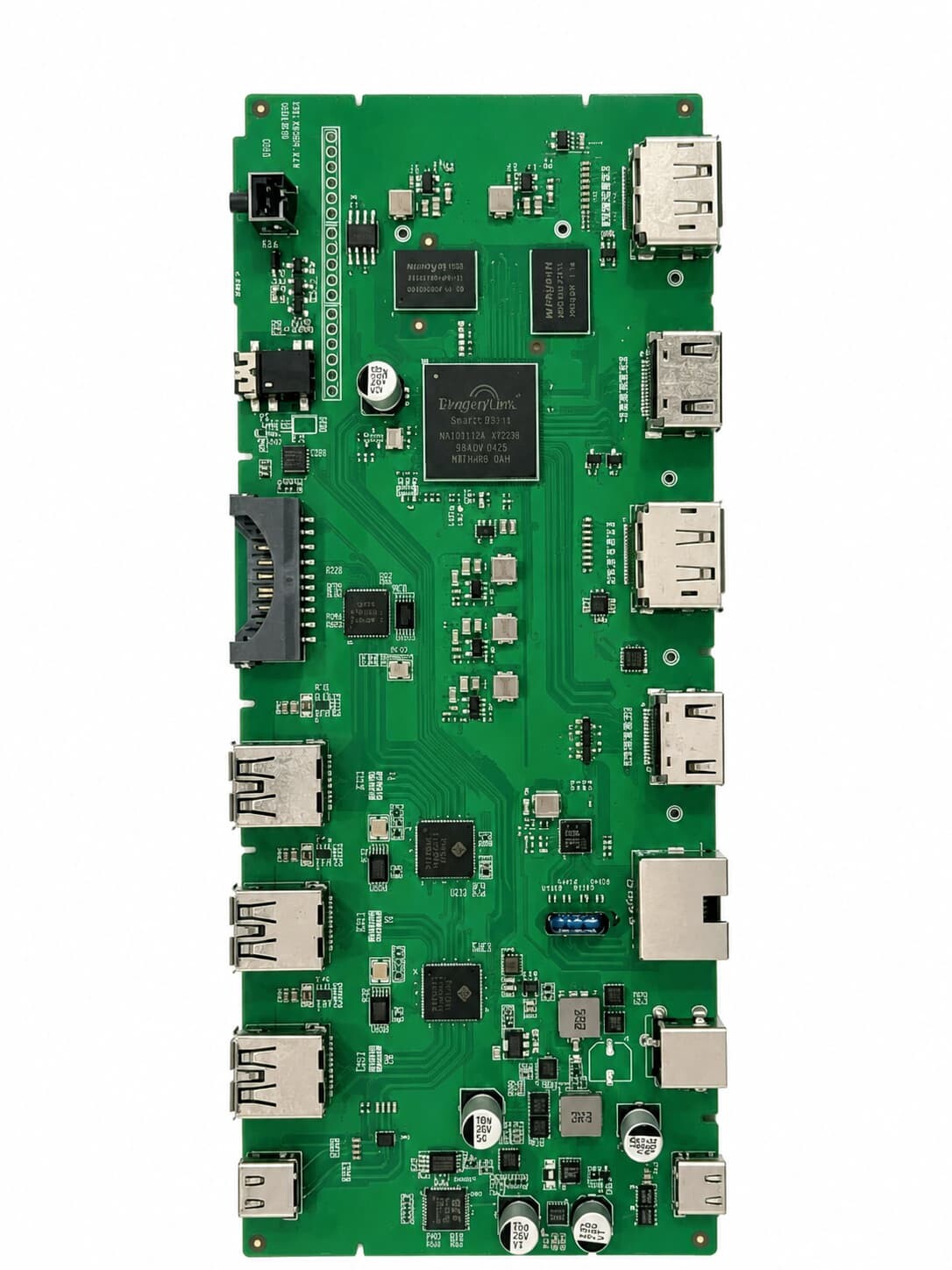

DS007
