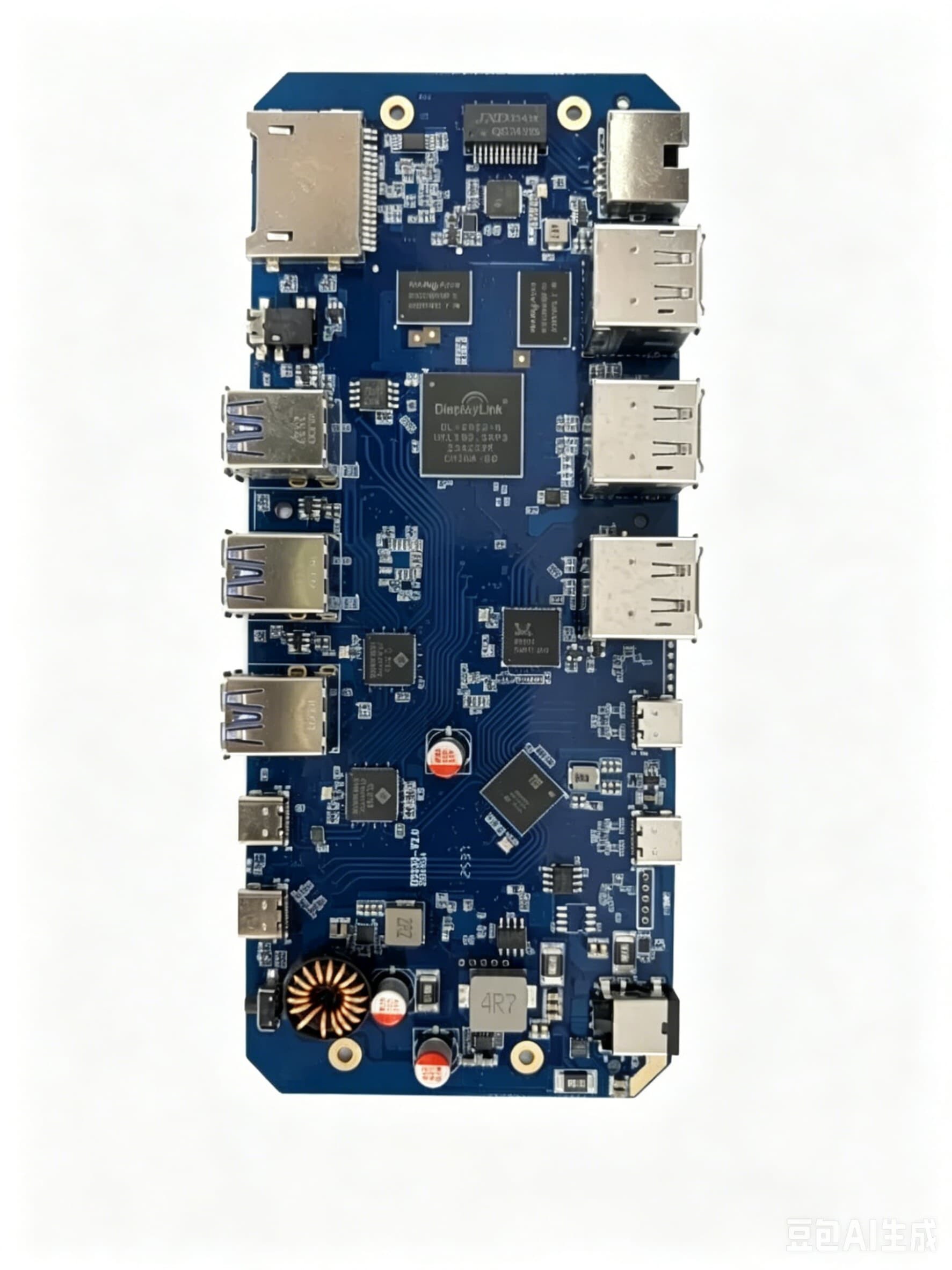

DS020
Thunderbolt 4 / USB4 6-Screen Dock PCBA: Combines dual Thunderbolt video with DisplayLink technology for single-screen 8K@60Hz support and up to six simultaneous displays. Features 40Gbps data transfer plus 2.5G networking to redefine multi-screen productivity setups.
Core Features
- Six-screen display output capability
- 40Gbps Thunderbolt 4 Transfer
- Single-screen 8K@6Hz support
- DisplayLink Quad-Screen Expansion
Typical Use Cases
Multi-screen Productivity Desktop
Extend displays to six screens for professionals
8K Video Editing
Supports 8K@60Hz high-resolution output on a single display
Financial Trading Terminal
Monitor market trends across multiple displays
Customizable APIs and capabilities
All APIs and features can be customized to your specific needs. Below are typical configuration options:
- 1 × Type-C TBT4/USB4 Uplink Port (40Gbps, Reverse Charging up to 9W, DP Alt Mode 1.4)
- 1 × DC power input (20V, 7~12A)
- 2 × Type-C TBT4/USB4 Downstream (40Gbps, video up to 8K@60Hz)
- 1 × HDMI (up to 4K@60Hz)
- 1 × DP (up to 4K@60Hz)
- 2 × DisplayLink HDMI (up to 4K@60Hz)
- 2 × DisplayLink DP (up to 4K@60Hz)
- 1 × Type-C USB 3.2 Gen2 (10Gbps)
- 6 × USB-A USB3.2 Gen2 (10Gbps)
- 1 × RJ45 2.5G Ethernet port (backward compatible with 1000/100/10M)
- 1 × SD 4.0 Card Reader
- 1 × TF 4.0 Card Reader
- 1 × 3.5mm audio jack (output + mic)
OEM/ODM Customization
White-label services
Custom Branding, Logos & Packaging Design
Hardware Customization
Interface, port layout, and chassis modifications
Firmware Tuning
Feature Optimization and Custom Development
Authentication Support
CE, FCC, and RoHS regional compliance support
Package Contents
- DS020 PCBA Mainboard
- DC Power Adapter (20V)
- Thunderbolt 4 Cable
- Product Manual
